Mining Ancillary Devices: Depth Gauges, U-Tubes and Stopping Poles
The highly skilled team at GHF can fabricate a range of ancillary devices for many mining applications. If you have a project please contact us with your specifications.
1974
Fabricating in the Hunter since
ISO 9001
Certified quality system
AS/NZS 5131
Certified structural steelwork
100%
Australian owned and operated
Depth Gauges
- Multitude of sizes to suit your nominated wall thickness and can be supplied with a plastic plug if required
- Bottom capping with drill holes for fixed solutions
U Tubes/S Traps
- U Tubes or S Traps can be manufactured in both 4” (100mm) and 6” (150mm) material
- Different configurations to suit your needs

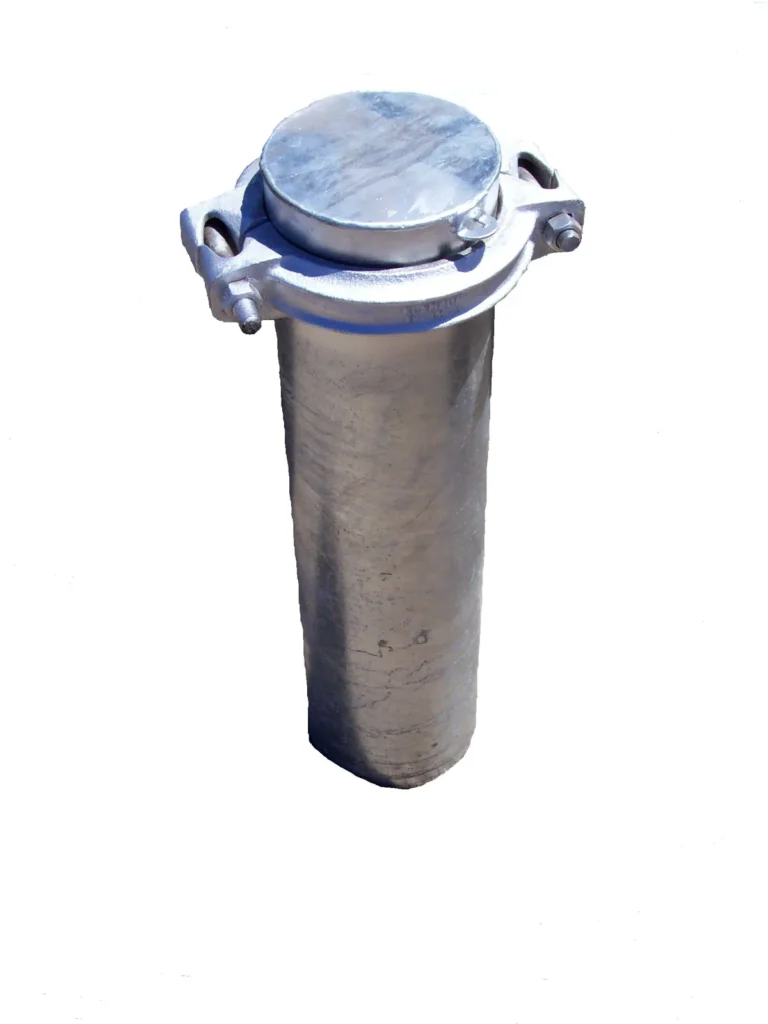

Victaulic Pipes
- Cast into the stopping of underground mines
- Allows water to be drained through them or services such as air pipes to be run through them
- Commonly constructed from either 100mm (4”) or 150mm (6”) diameter pipe which is then capped and a clamp attached
Gas Sample Pipes
- Standard size is 1050mm long inside – 1250mm overall but can also be made in:
- 1200mm long inside – 1400mm overall and
- 1300mm long inside – 1500mm overall

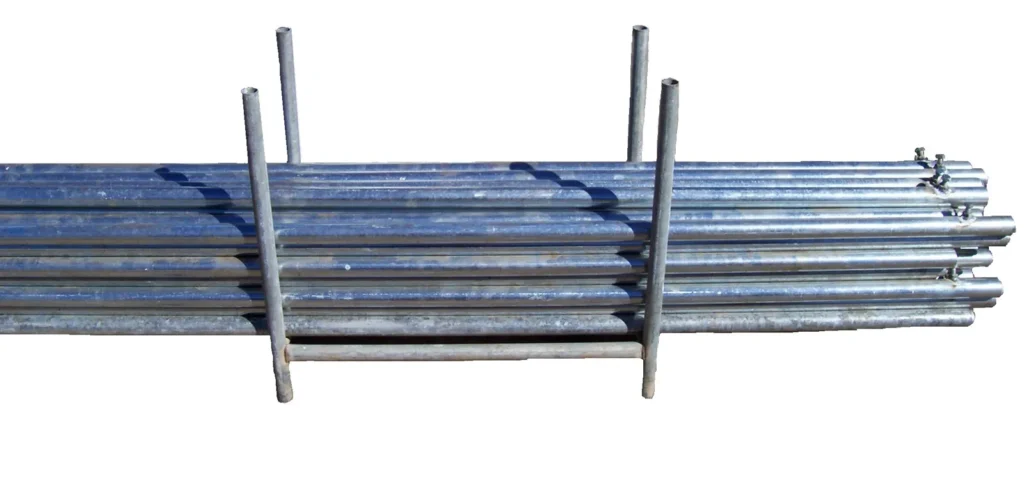

Stopping Poles
- Our standard Stopping Poles are 2.2 metres shut, 3.9 metres fully open but can be manufactured to suit any nominated size in both square section and pipe
- Custom designed to suit your requirements
